Directional Valve

Product Description

  • Manual control valve, same direction with the spool. Easy control, precise and reliability;
  • Spool type design, excellent sealing performance, compact size, lighter weight, easy repairing;
  • Special surface finishing in inner surface. Low friction, low pressure starting, durable;
  • Lubrication is not necessary;
  • Multi mounting position, easy to fix.

Acting typeDirect acting
Working pressure0 to 0.8Mpa
Working temperature-20 to 70℃
Body MaterialAluminum

Product Description

3L hand air valve

Product Specifications

Model 3L110-06 3L210-06 3L210-08 3L310-08 3L310-10 3L410-10 3L410-15
Working medium Clean air
Acting type Direct acting
Joint size G1/8″ G1/4″ G3/8″ G1/2″
Ways 2 Position 3 Port
Lubrication No
Working pressure 0 to 0.8Mpa
Max. pressure 1.5Mpa
Working temperature -20 to 70℃
Body material Aluminum
Seal material NBR

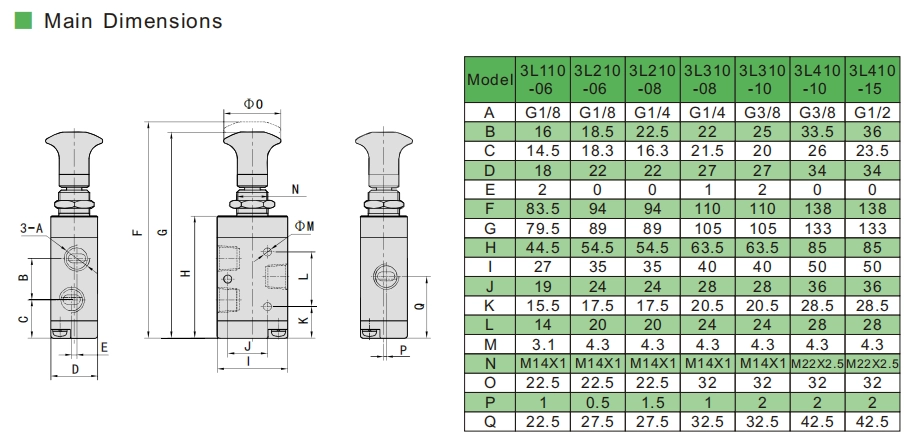

3L hand valve
