Directional Valve

3H Series 2 Position 3 Port Hand Push Valve

  • Manual operation, smooth actuation, and exact and reliable orientation；
  • Siliding column structure has good tightness and light weight and is easy to install and dismount；
  • Internal hole adopts special processing technology which has lttle attrition friction, long service life；
  • No need to add oil for lubrication；
  • Panel-mounting makes it convenient to install and apply.

Working mediumClean air
Working pressure0 to 1.0Mpa
Working temperature-10 to 60℃
Body MaterialAluminum
Quality Warranty1 year
Request a Quote

Product Description

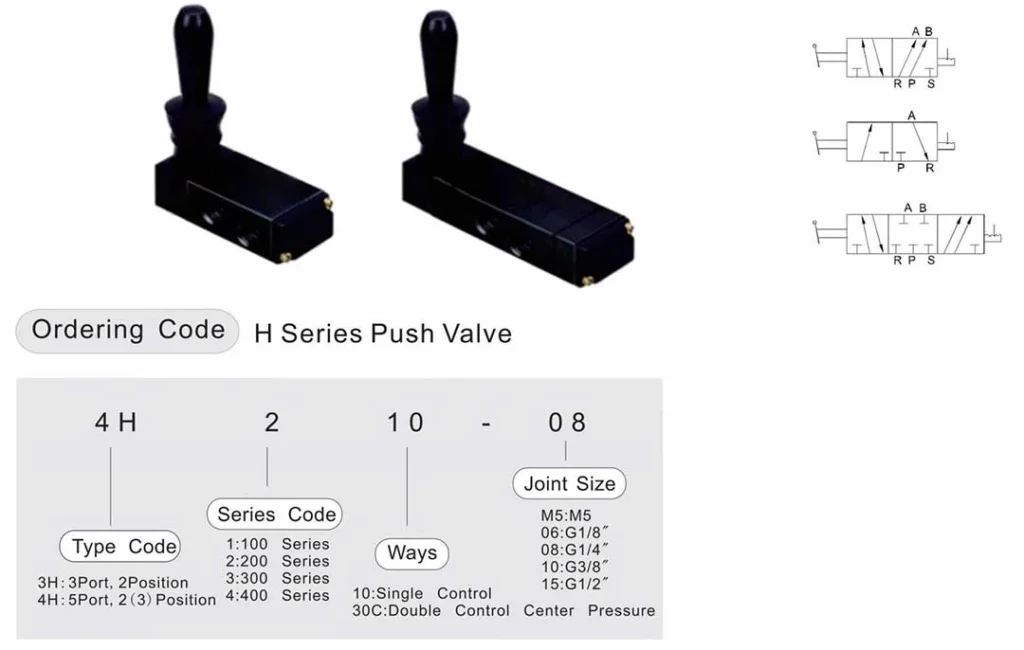

pneumatic hand lever valve

Product Specifications

Modle Joint Size Sectional Area Working Medium Working Pressure Max.

Pressure

 Working Temperature Body Material Lubrication
3H110-06 G1/8″ 12mm2

(CV=0.67)

 Clean air 0~1.0 Mpa 1.5 Mpa -10~60℃ Aluminum  NO
3H210-06 G1/8″ 14mm2

(CV=0.78)
3H210-08 G1/4″ 16mm2

(CV=0.89)
3H310-08 G1/4″ 25mm2

(CV=1.39)
3H310-10 G3/8″ 30mm2

(CV=1.67)
3H410-10 G3/8″ 40mm2

(CV=2.23)
3H410-15 G1/2″ 50mm2

(CV=2.79)
4H110-06 G1/8″ 12mm2

(CV=0.67)
4H210-06 G1/8″ 14mm2

(CV=0.78)
4H210-08 G1/4″ 16mm2

(CV=0.89)
4H310-08 G1/4″ 25mm2

(CV=1.39)
4H310-10 G3/8″ 30mm2

(CV=1.67)
4H310-10 G3/8″ 40mm2

(CV=2.23)
4H410-15 G1/2″ 50mm2

(CV=2.79)
4H130C-06 G1/8″ 9mm2

(CV=0.5)
4H230C-08 G1/4″ 12mm2

(CV=0.67)
4H330C-10 G3/8″ 18mm2

(CV=1.00)
4H430C-10 G1/2″ 30mm2

(CV=1.67)

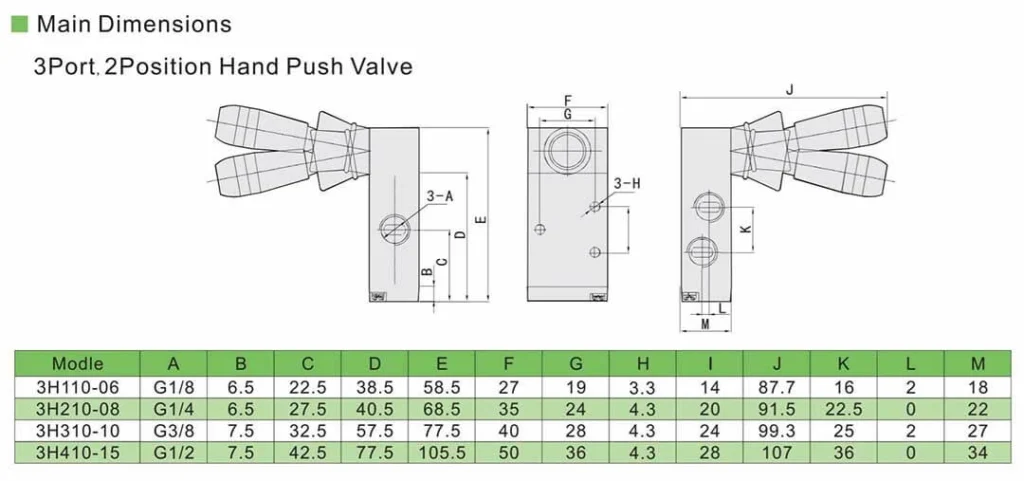

3 2 hand lever valve
