Product Feature
1. SI series ISO 6431/ISO15552 standard cylinder has a profile tube and piston rod.
2. The bore size is 32mm to 200mm, stroke is 50 to 1000mm.
3. Type: basic type, double-shaft type, double-shaft adjustable stroke type, etc.
4. The damping adjustment of cylinder front and rear end plates make the cylinder a smooth, safe, and noise-free operation.
5. Can replace DSBC pneumatic cylinder.

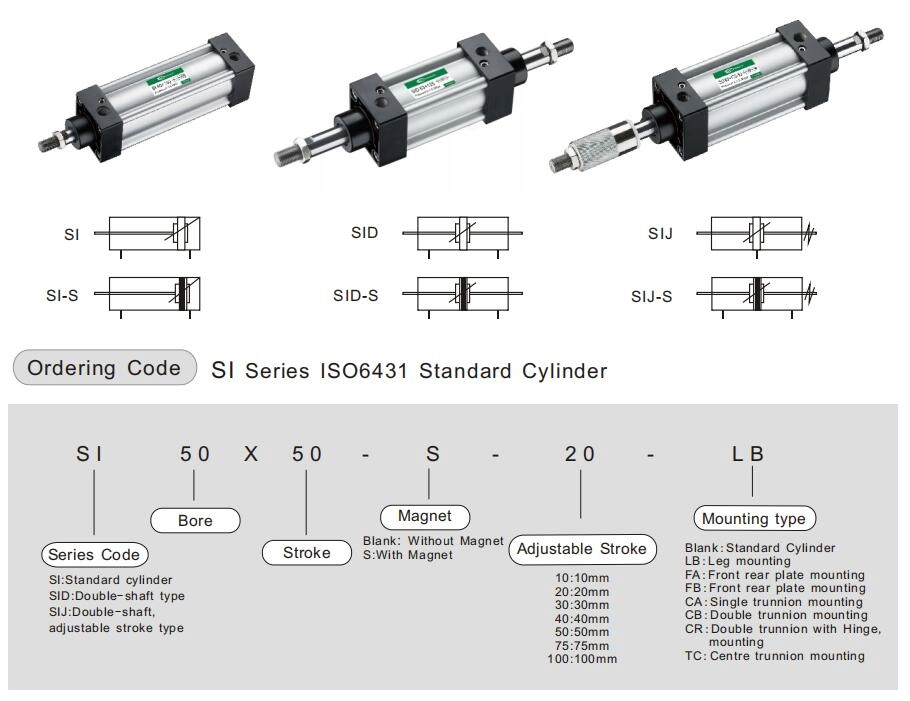

Symbol
Product Specifications
| Bore（mm） | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | |
| Acting type | Double acting | |||||||||
| Working medium | Clean air | |||||||||
| Mounting type | SI Series | Basic type FA FB CA CB LB TC TC-M1 TC-M2 | ||||||||
| SID/SIJ Series | Basic type FA LB TC TC-M1 TC-M2 | |||||||||
| Working pressure range | 0.1~1.0Mpa | |||||||||
| Guaranteed pressure | 1.5Mpa | |||||||||
| Working temperature | 5~70℃ | |||||||||
| Speed range | SI Series：50~800mm/s other series：30~800mm/s | |||||||||
| Cushion type | Adjustable cushion | |||||||||
| Cushion stroke | 27mm | 30mm | 36mm | 40mm | 50mm | |||||
| Port size | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | |||||

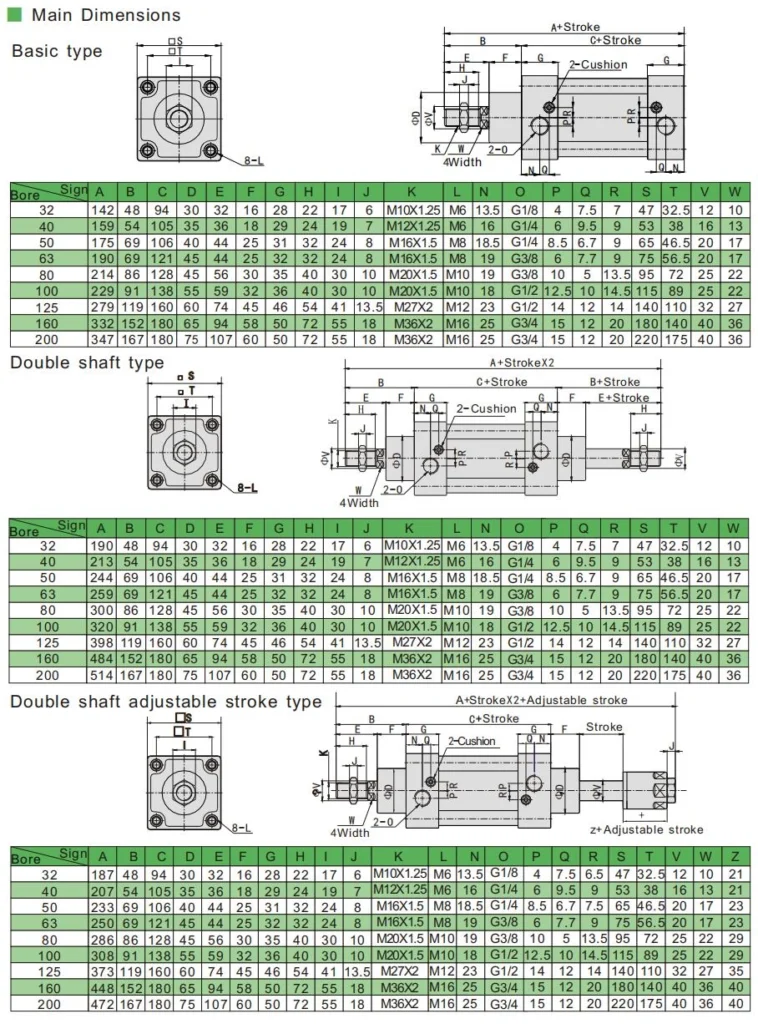

Main Dimensions
