Product Feature
1. Standardised design: conforms to ISO6431 and VDMA24562 standards.
2. Various mounting options: Including basic, trunnion, and swivel eye rose joint mounting options.
3. Cylinder bores from 32 to 200mm and strokes from 10 to 1000+mm to meet various usage requirements.
4. Widely used: Suitable for automation equipment, robotic arms and various industrial occasions.

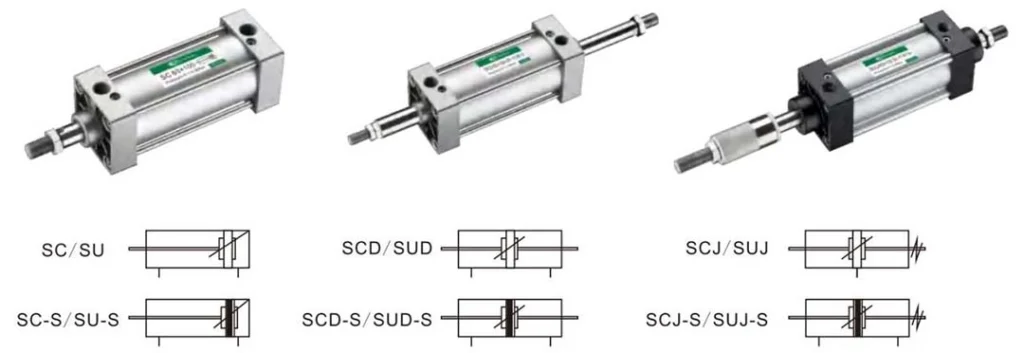

Symbol

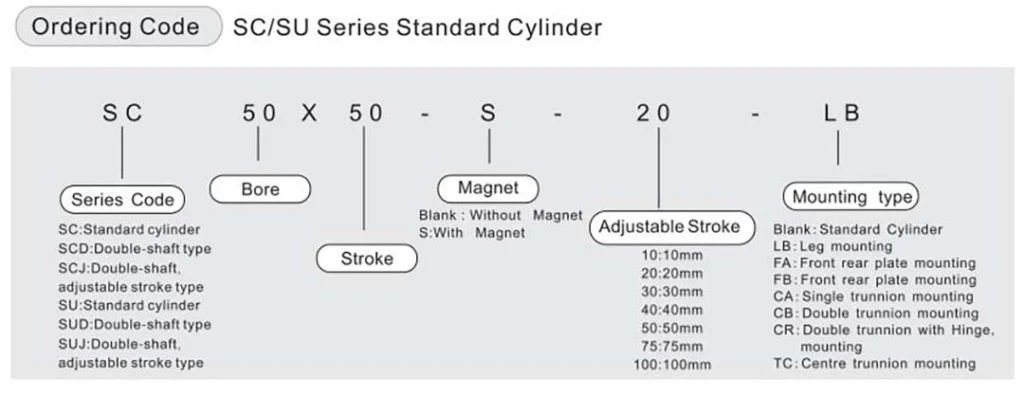

Product Specifications
|
Bore(mm)
|
32
|
40
|
50
|
63
|
80
|
100
|
125
|
160
|
200 | |
|
Acting type
|
Double acting
|
|||||||||
|
Working medium
|
Clean air(40um Filteration)
|
|||||||||
|
Mounting type
|
SU/SC Series |
Basic type FA FB CA CB CR LB TC TC-M
|
||||||||
| SCD/SUD Series |
Basic type FA LB TC TC-M
|
|||||||||
| SCJ/SUJ Series |
Basic type FA LB TC TC-M
|
|||||||||
|
Guaranteed pressure
|
1.5Mpa
|
|||||||||
|
Working pressure range
|
0.1 to 0.9Mpa
|
|||||||||
|
Working temperature
|
-5 to 70ºC
|
|||||||||
|
Speed range
|
50 to 800mm/s
|
|||||||||
|
Cushion type
|
Adjustable cushion
|
|||||||||
|
Cushion stroke
|
20mm
|
32mm
|
45mm
|
|||||||
|
Port size
|
G1/8
|
G1/4
|
G3/8
|
G1/2
|
G3/4 |
|||||

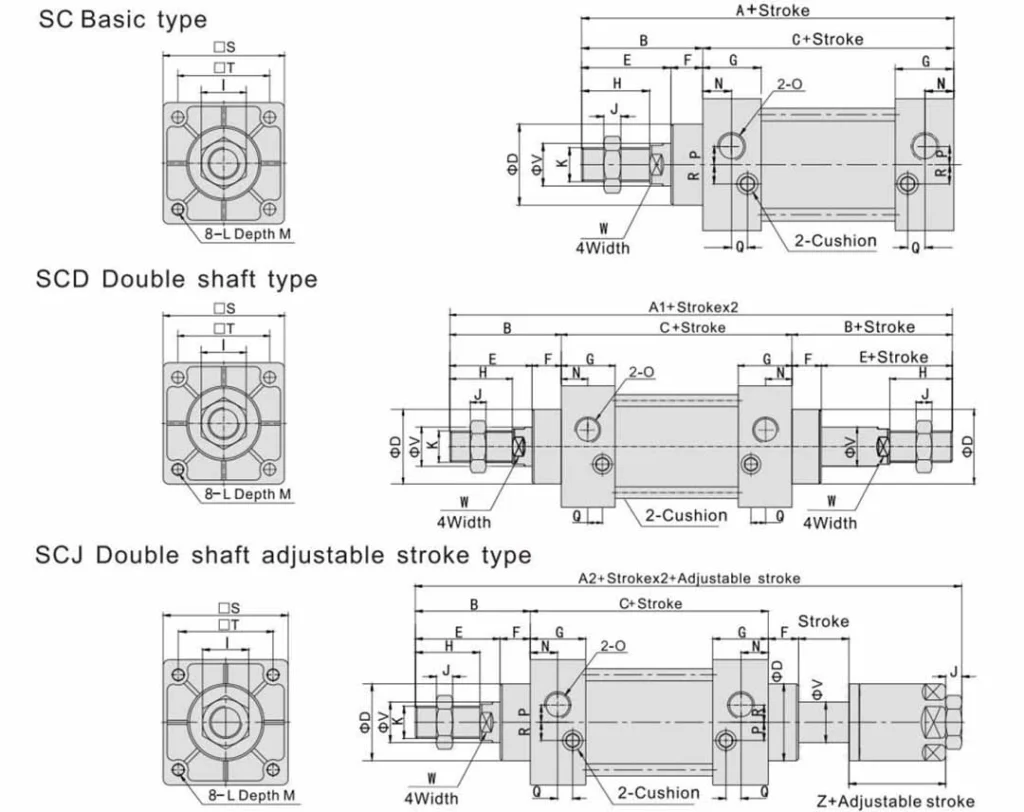

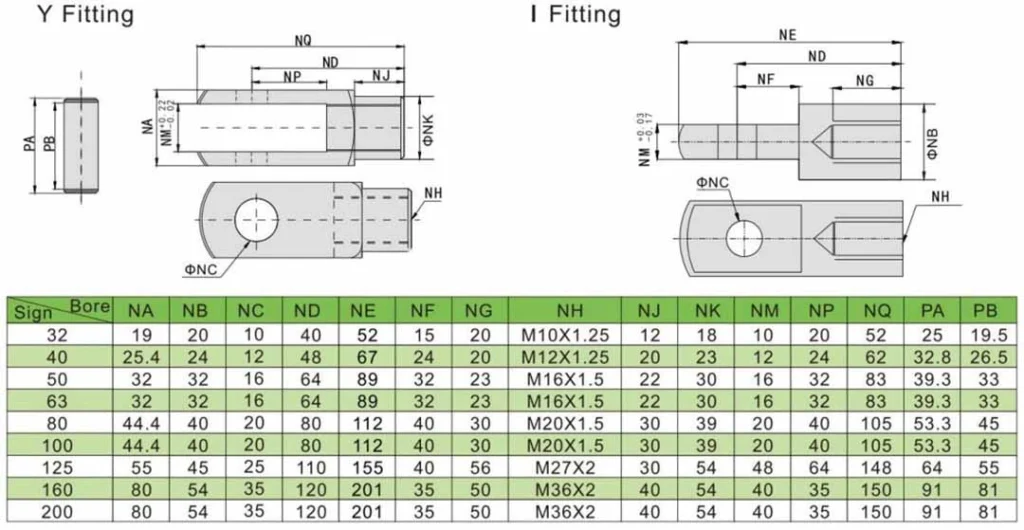

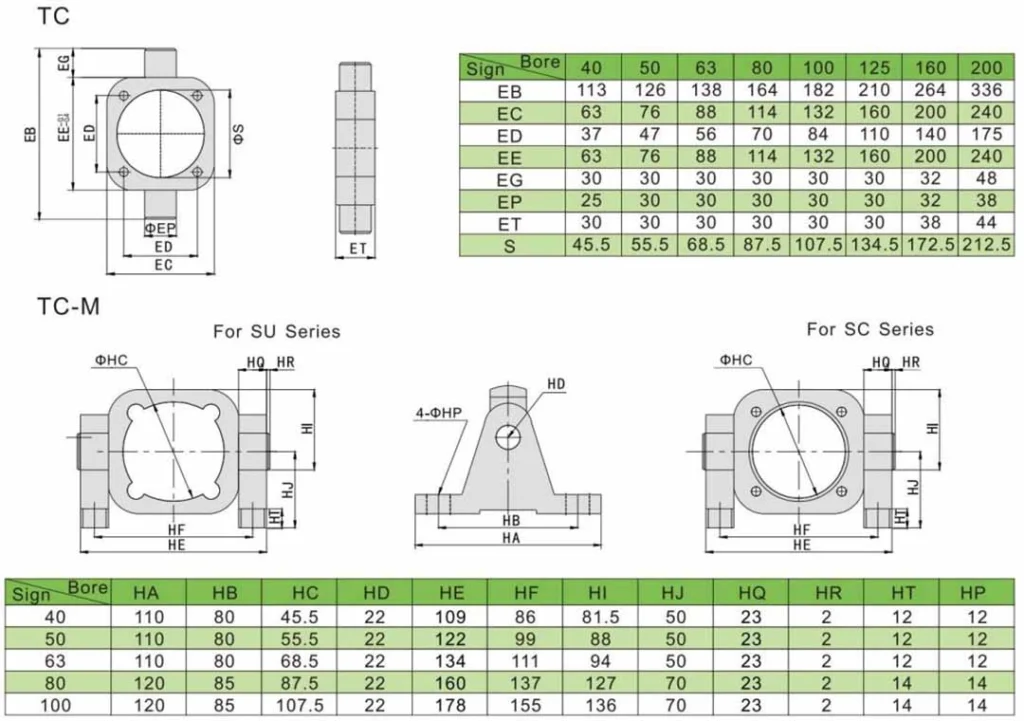

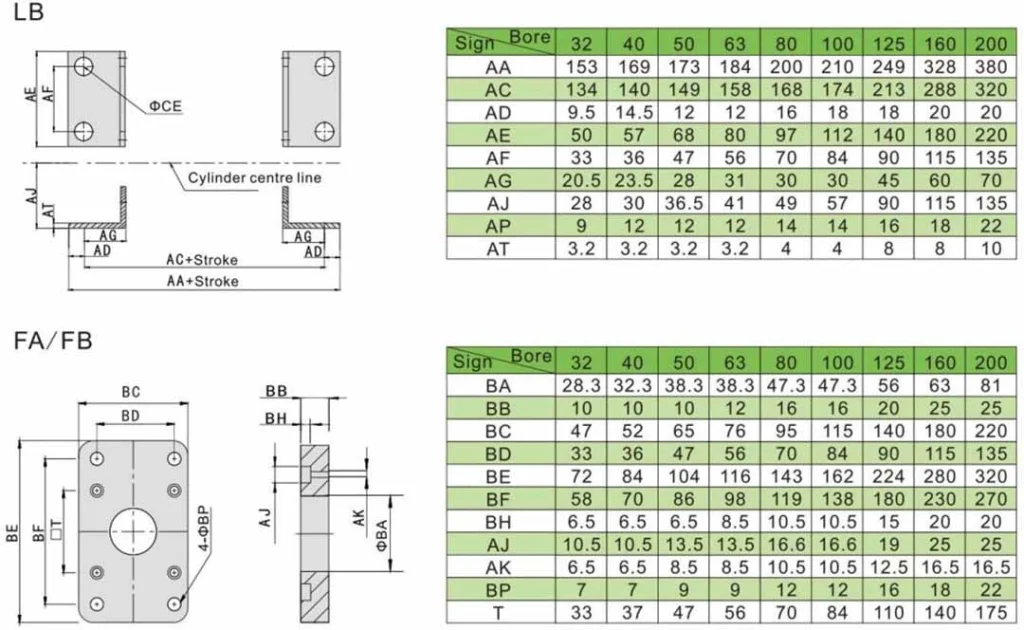

Main Dimensions
