Air Hose

PBH Braided Tube (Ester) / Yarn Tube

Features: Excelling in restoring force, good chemical resistance.

Shock resistance: flexible and light; hardly loss in pressure. Constant in Hardness: it is 1. 8 times the working pressure, and more than twice longer the serving life of single-layer PU tube. Non-toxic, tasteless, colors can be customized, easy for line identification. Comply with ROHS.

Working mediumAir/Water(other fluids)
Working temperature-20℃ to 80℃
Pressure adjusting range20bar to 60bar
Hardness95A to 98A
Body MaterialPolyester Polyurethane
Tube colorClear, Black, Blue, Red, Yello
Request a Quote

Product Description

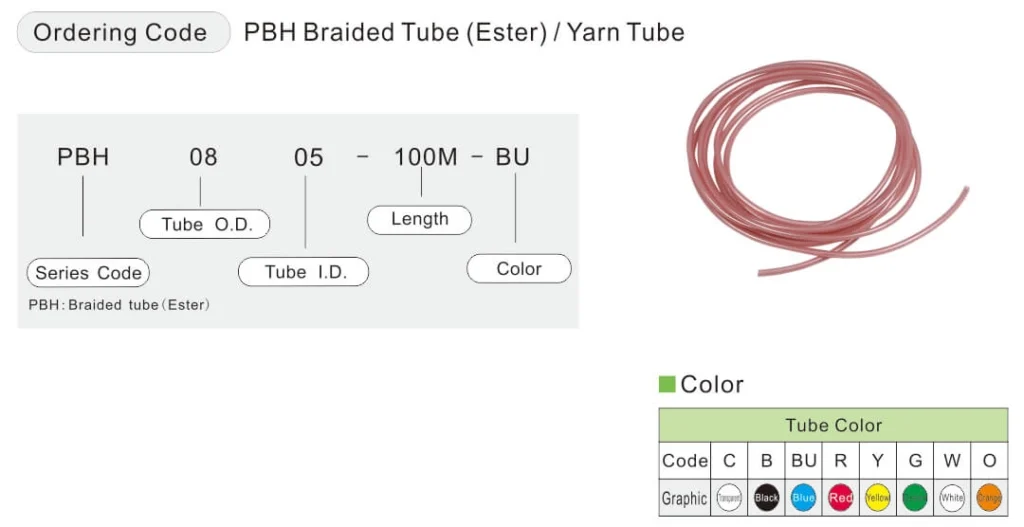

PBH Braided tube

Product Specifications

Material
Polyester Polyurethane
Hardness
90A(PBH)/85A(PBS)
Fluid
 Air/Water(other fluids)
Environment and fluid temperature
-20℃ to 80℃

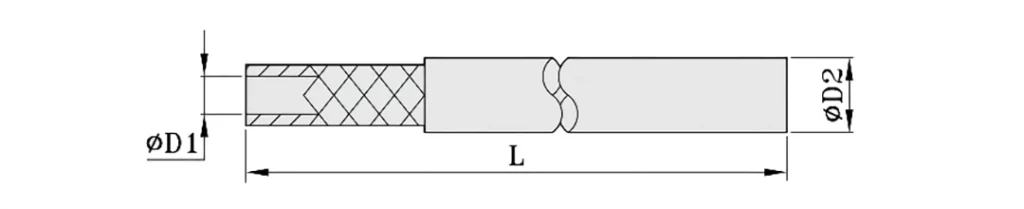

 Main Dimensions

PBH air hose

Model
D1(mm)
D2(mm)
 Length

(m/roll)
Max Working Pressure at 20℃ (bar)
Min Burst Pressure
at 20℃ (bar)
Min Bend Radius at 20℃ (mm)
Weight
(kg/roll)
PBH0850
5
8
100
20
60
20
3.8
PBH1065
6.5
 10
100
20
60
30
5.6
PBH1208
8
12
100
20
60
40
7.8
PBH3/8 6.35
9.5
100
20
60
30
4.9
PBH1/2
8.46
12.7
100
20
60
40
8.8
