Air Hose

PAC Nylon Tube

The PA coiling tube, featuring excellent flexibility and excelling in restoring force. Easy using for piping of movable parts.

Working mediumAir,Water,Oil,Normal Solvent
Working temperature-40℃ to 100℃
Pressure adjusting range15bar to 60bar
Hardness60A or 64A
Body MaterialNylon
Request a Quote

Product Description

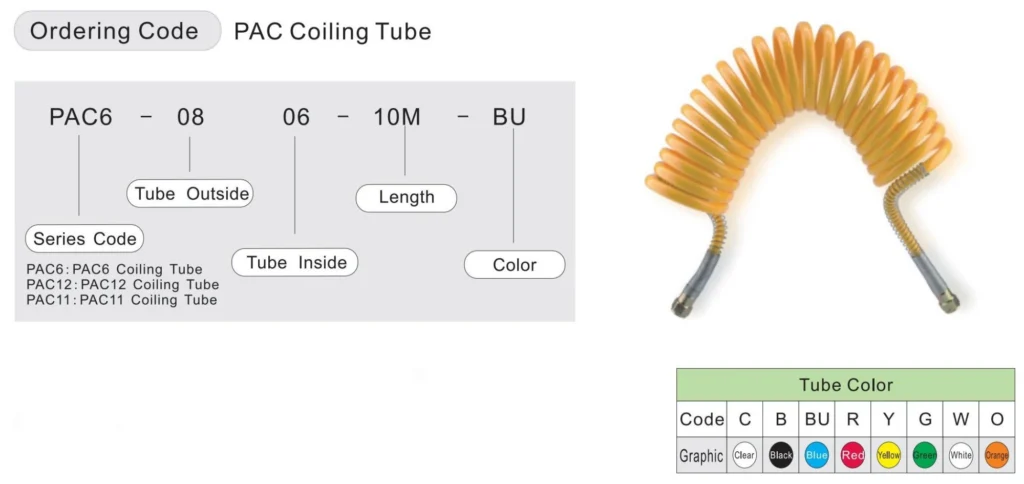

PAC order code

Product Specifications

Model PAC6 PAC11 PAC12
Material Nylon 6 Nylon 11 Nylon 12
Hardness 64D 60D 60D
Fluid admitted Air,Water,Oil,Normal Solvents
Environment and fluid temperature -40-100℃ -40-100℃ -40-90℃

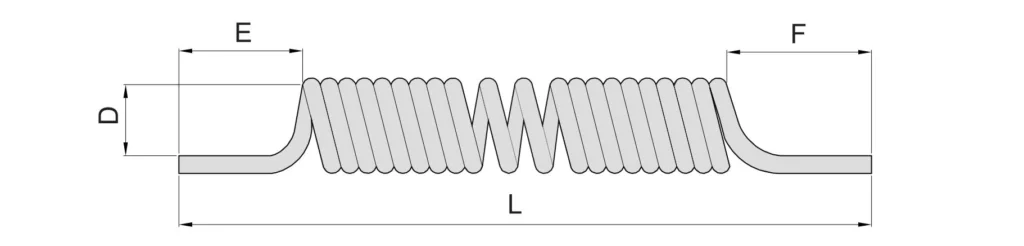

Main Dimensions

PAC main

Model
D1(mm)
 Maximum Length (m/roll)
E(mm)
F (mm)
PA6(PA12/PA11)-0425
32
 1-15 80 80
PA6(PA12/PA11)-0604
38
1-15
80
 80
PA6(PA12/PA11)-0806
48
1-20
80
80
PA6(PA12/PA11)-1075 58
3-20
80
80
PA6(PA12/PA11)-1209 68 3-20 80 80
PA6(PA12/PA11)-1/4 38 1-15 80 80
PA6(PA12/PA11)-3/8 58 3-20 80 80
PA6(PA12/PA11)-1/2
 68
3-20
80
 80
