Air Hose

FEP Teflon Tube

Features: Excellent high and low temperature resistance and mechanical properties, super strong corrosion resistance and chemical stability, UV resistance, and good waterproof performance. Applications: Cable insulation, chemical transportation, food processing, gas detection equipment, UV protection equipment, automobile die-casting equipment, etc.

Working mediumAir, Water, Inert gas
Working temperature-40℃ to 200℃ 0℃ to 100℃
MaterialSoft fluoropolymer
Request a Quote

Product Description

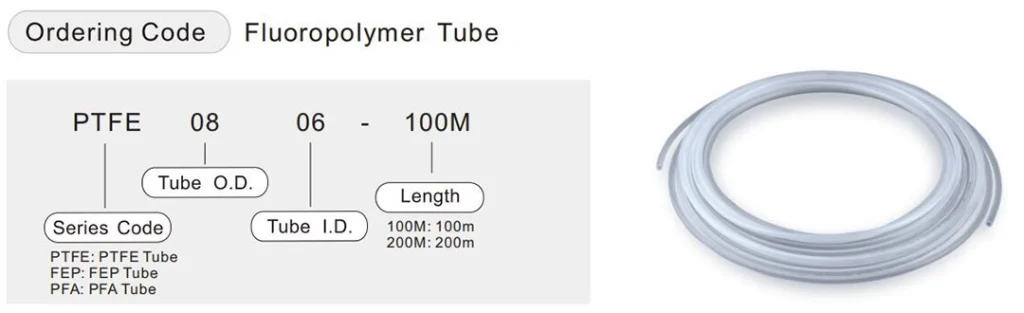

  • Symbol

PTFE teflon hose

Product Specifications

Product Name FEP Teflon Tube
Material FEP
Fluid Air, water, inert gas, chemical liquid
Working temperature -65 ℃ ~ +200 ℃ (Air, inert gas)
0 ℃ ~ +100 ℃ (Water)
Length 100 / 200 m/roll
Tolerance OD3-12mm, tolerance is ± 0.1mm
OD14-16mm, tolerance is ± 0.15mm

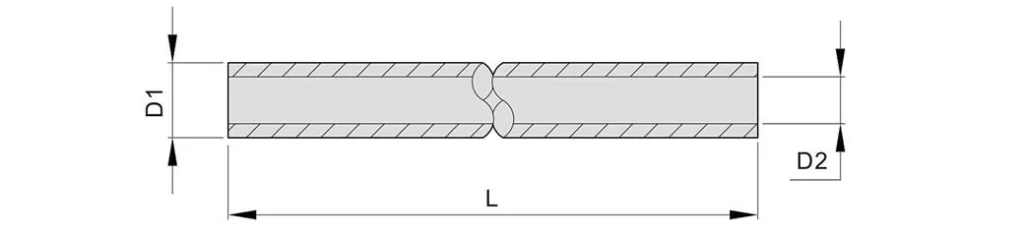

Main Dimensions

fluoropolymer hose

Model OD × ID (mm) Working temperature (℃) Maximum working pressure （MPa) Minimum bending radius (mm)
20 ℃ 100 ℃ 200 ℃
FEP0402 4 × 2 -65 ℃ ~ +200 ℃

(Air, inert gas)

0 ℃ ~ +100 ℃

(Water)

 2.3 0.85 0.4 15
FEP0425 4 × 2.5 1.7 0.6 0.3 20
FEP0604 6 × 4 1.5 0.55 0.3 35
FEP0806 8 × 6 1 0.4 0.2 60
FEP1075 10 × 7.5 1 0.4 0.2 95
FEP1008 10 × 8 0.7 0.25 0.1 100
FEP1209 12 × 9 1 0.4 0.2 100
FEP1210 12 × 10 0.7 0.25 0.1 130
FEP 1/8 3.18 × 2.18 1 0.4 0.2 20
FEP 3/16 4.76 × 3.15 1.5 0.55 0.3 25
FEP 1/4 6.35 × 3.95 1.7 0.6 0.3 35
FEP3/8 9.53 × 6.33 1.5 0.55 0.3 60
FEP 1/2 12.7 × 9.5 1 0.4 0.2 95
FEP3/4 19.05 × 15.85 0.7 0.25 0.1 220
