Air Hose

EU Tube (Ether-Based Polyurethane,Food Grade,Medical Grade)

Features:Good resistance to moisture, resistant to mold,even suitable for wet and bacterial environment. Anti- aging:Long service life. Low temperature resistant, Anti-UV:Can be used under harsh conditions, like,exposure to outdoor sunlight. Anti- hydrolysis:Transparent color, more suitable for observation of liquid flow FDA Approved.

Working mediumAir
Working temperature-20℃ to 80℃
Pressure adjusting range5bar to 8bar
Hardness95A to 98A
Body MaterialPolyester Polyurethane
Request a Quote

Product Description

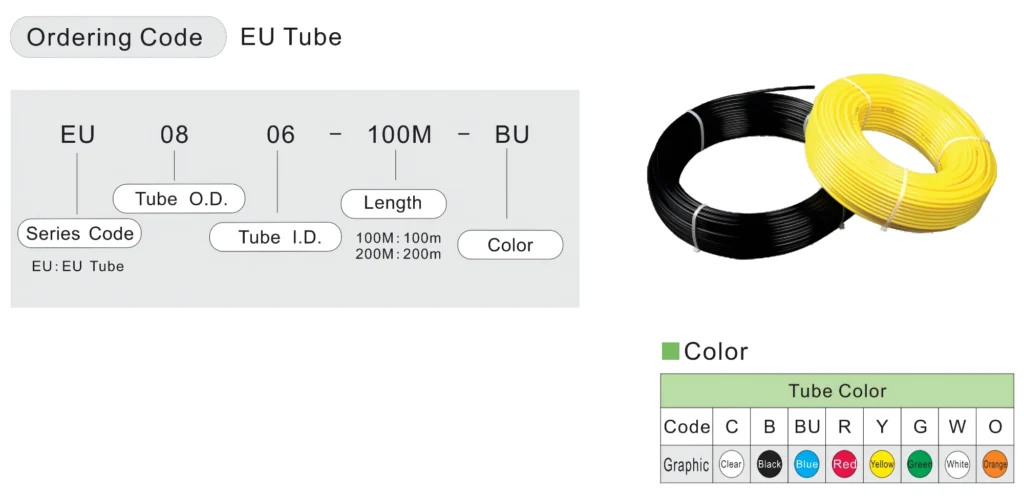

EU order code

Product Specifications

Material
Polyester Polyurethane
Hardness
95A-98A
Fluid
 Air
Environment and fluid temperature
-20℃ to 80℃

Main Dimensions

EU main dimension

Model
OD(mm)
ID(mm)
Length(m/roll)
Max Working Pressure at 20℃(bar)
Min Burst Pressure
at 20℃(bar)
Min Bend Radius at 20℃(mm)
Net Weight
(kg/roll)
EU0425
4
2.5
200
10
30
10
1.9
EU0604
6
 4
200
10
30
15
3.9
EU0850
8
5
100
10
30
20
3.8
EU0855
8
5.5
100
8
24
20
3.3
EU1065
10
6.5
100
10
30
30
5.6
EU1208
12
8
100
10
30
35
7.8
EU5/32
3.94
2.5
200
10
30
10
1.9
EU1/4
6.35
4.23
200
10
30
15
4.4
EU5/16 7.94 5 100 10 30 20 3.8
EU3/8 9.52 6.35 100 10 30 30 4.9
EU1/2
12.7
8.46
100
10
30
35
8.8
