Product Feature
DNC Series ISO 15552 (ISO 16431) pneumatic actuators are used to provide straight-line, in/out linear movement for a variety of applications.
1. The piston seal is composed of two Y-shape one-way seal structure, which has compensation function, long service life and low start-up pressure.
2. The square aluminum pipe without tie rod has good corrosion resistance.
3. The buffer adjustment of cylinder is smooth and steady.
4. Available as single acting (spring extend or spring return actuators) and double acting styles with single rod or double rod configurations, non-rotating, and precision non-rotating models.
5. Cylinders and accessories for installation with several specifications are optional.

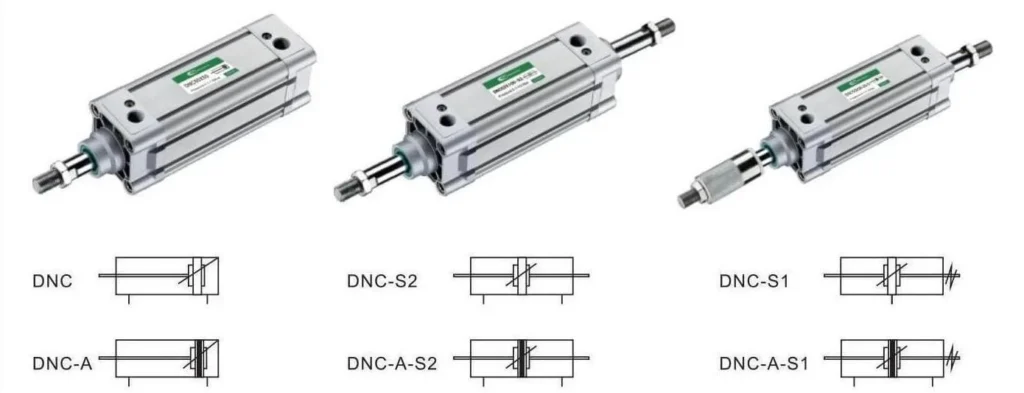

Symbol
Product Specifications
| Bore(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
| Acting type | Double acting | ||||||
| Working medium | Clean air(40um Filteration) | ||||||
| Mounting type | DNC Series:Basic type FA FB CA CB LB TC TC-M | ||||||
| DNC-S2 Series:Basic type FA LB TC TC-M | |||||||
| Working pressure range | 0.1-1.0Mpa | ||||||
| Guaranteed pressure | 1.35Mpa | ||||||
| Working temperature | 5-70℃ | ||||||
| Speed range | 50-800mm/s | ||||||
| Cushion type | Adjustable cushion | ||||||
| Cushion Stroke | 24mm | 32mm | |||||
| Port size | G1/8 | G1/4 | G3/8 | G1/2 | |||

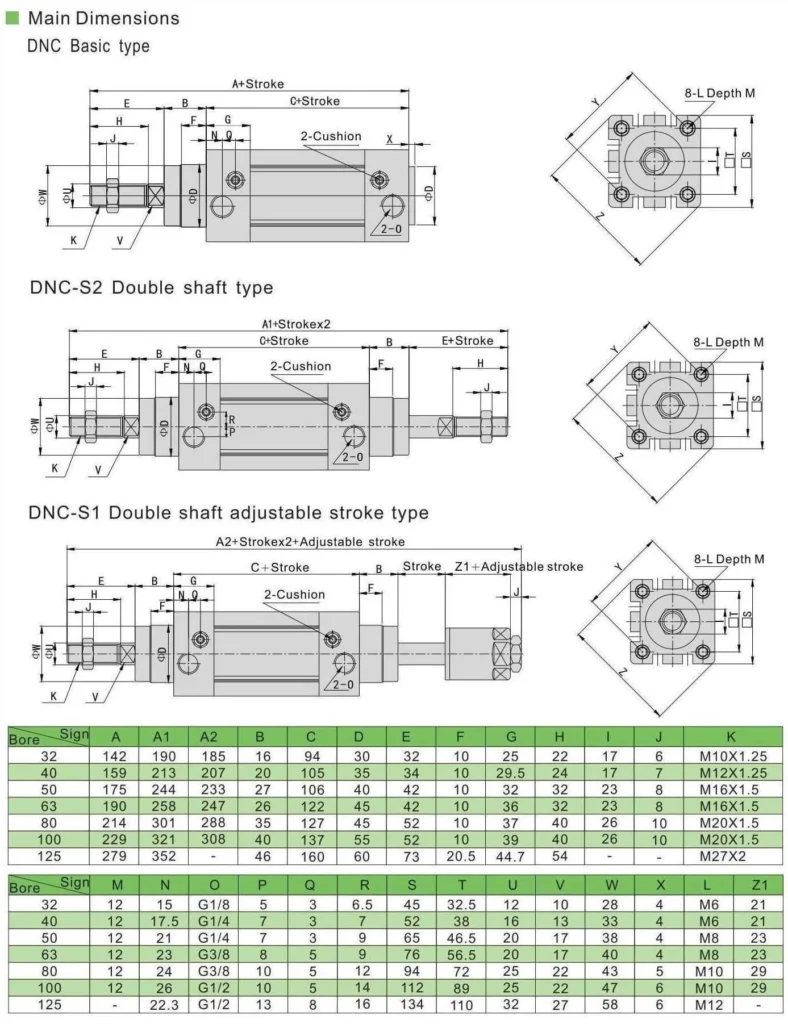

Main Dimensions
