Product Feature
1. CP96, profile tube design ISO cylinder with enclosed tie rods, is available in 6 bore sizes from ø32 to ø100mm. The series is available with a single or double rod in 6 bore sizes from ø32 to ø100mm.
2. The air cushion and bumper cushion combination greatly reduces noise at the end of stroke. High accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life.
3. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod.
4. Standard strokes range from 25 to 800mm.

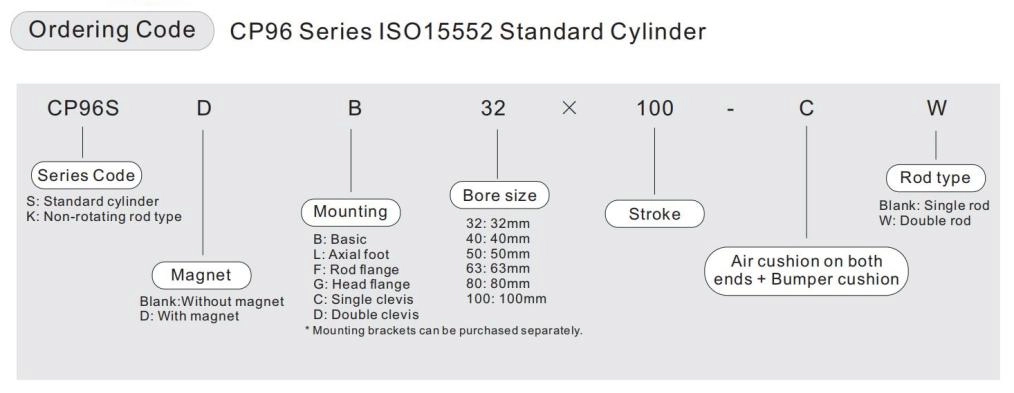

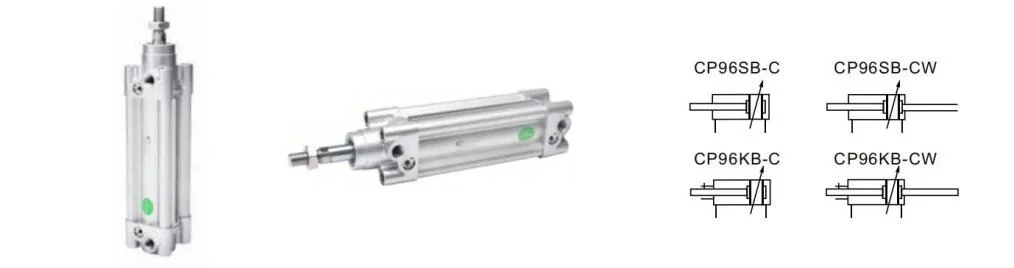

Symbol
Product Specifications
| Bore(mm) | 32 | 40 | 50 | 63 | 80 | 100 |
| working medium | clean air(40㎛ filteration) | |||||
| Acting type | Double acting | |||||
| Proof pressure | 1.5Mpa | |||||
| Max. Working pressure | 1.0Mpa | |||||
| Min. Working pressure | 0.05Mpa | |||||
| Working temperature | Without auto switch: -20 to 70℃(No freezing) with auto switch: -10 to 60℃(No freezing) |
|||||
| Lubrication | Not required(Non-lube) | |||||
| Speed range | 50 to 1000mm/s | |||||
| Stroke tolerance | Up to 500 stroke: 0 to +2.0, 501 to 1000 stroke: 0 to +2.4,
1001 to 1500 stroke: 0 to +2.8, 1501 to 2000 stroke: 0 to +3.2 |
|||||
| Cushion type | Air cushion on both ends + Bumper cushion | |||||
| Port size | G1/8 | G1/4 | G1/4 | G3/8 | G3/8 | G1/2 |
| Mounting | Basic, Axial foot-LB, Rod flange-FA, Head flange-FB,
Single clevis-CA, Double clevis-CB |
|||||
| Non-rotating accuracy | ±0.5° | ±0.5° | ±0.3° | |||
| Allowable rotational torque | 0.25N·m | 0.45N·m | 0.64N·m | 0.79N·m | ||

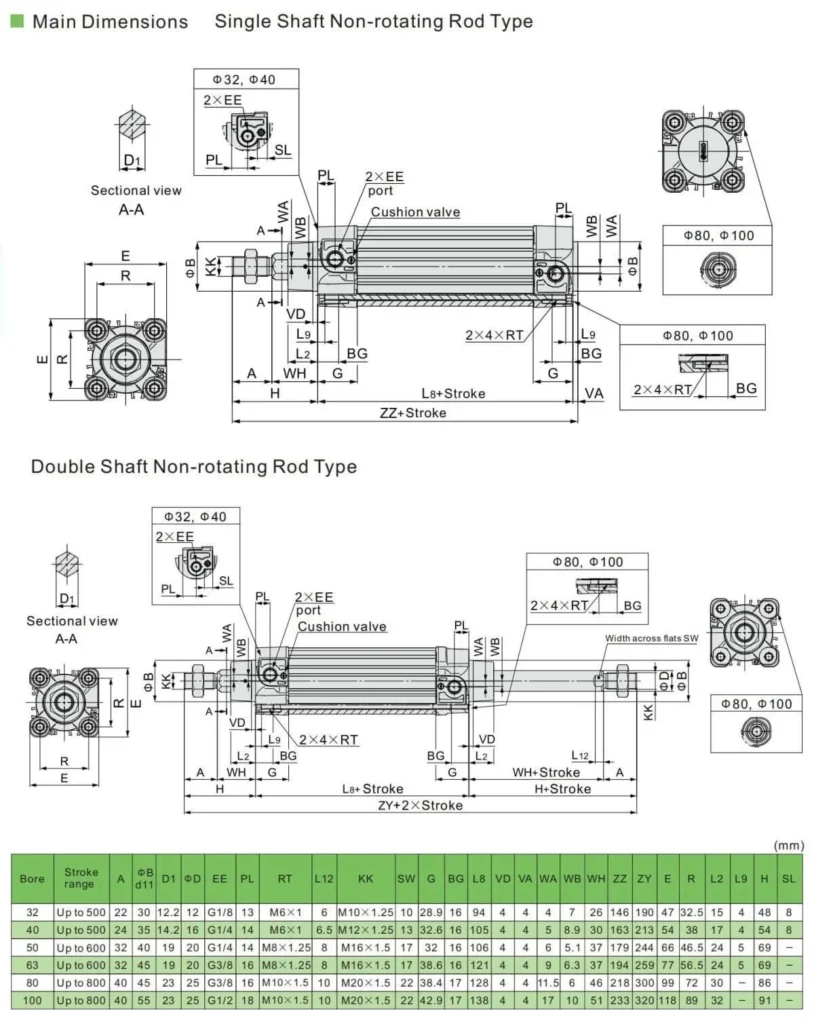

Main Dimensions
