Pneumatic Fitting

ASP Series Speed Controller with Pilot Check Valve

The ASP Series Speed Controller integrates a pilot check valve and speed controller into a single unit, allowing it to facilitate momentary intermediate stoppage of a cylinder and adjust its speed control.

Request a Quote

Product Feature

1.Compact Design: This product is designed to be space-saving and can be directly mounted to the actuator, providing a convenient solution for flow control and speed adjustment.

2. 360° Tubing Mounting: The ASP Series allows for the tubing mount direction to be adjusted 360°, offering flexibility in installation and making piping more convenient.

3. Nickel Plated Brass Parts: Brass parts of this speed controller are electroless nickel plated as standard, providing durability and resistance to corrosion.

4. One-touch connection for supply air only.

5. Available in PT, NPT, and G thread (standard).

Application

The intended use of the ASP Series speed controller with pilot check valve is for the speed control and intermediate stopping of an actuator, particularly in applications requiring momentary stoppage, precise speed adjustment, and flow control.

Symbol

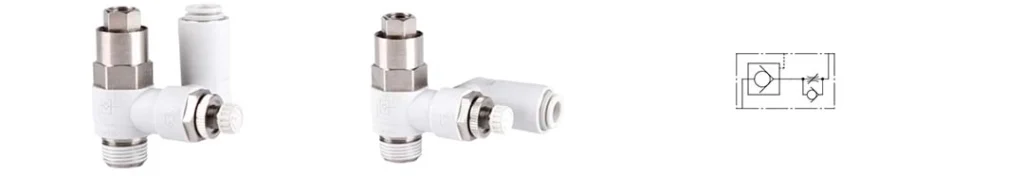

ASP Speed Controller symbol

ASP Speed Controller Specifications

Specifications

Working medium	Air
Proof pressure	1.5MPa
Max. working pressure	1MPa
Min. working pressure	0.1MPa
Pilot check valve working pressure	More than 50% the working pressure (Over 0.1MPa)
Working temperature	-5 to 60℃ (No freezing)
Applicable tubing material	Nylon, Soft nylon, Polyurethane

* Use caution regarding the max. operating pressure when soft nylon or polyurethane tubing is used.

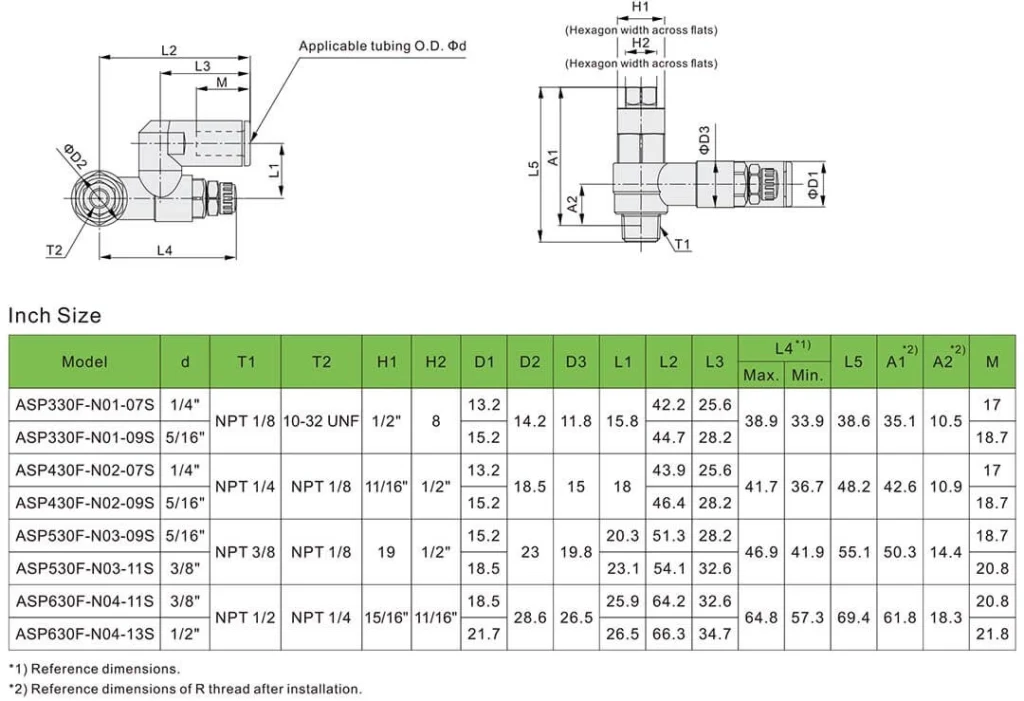

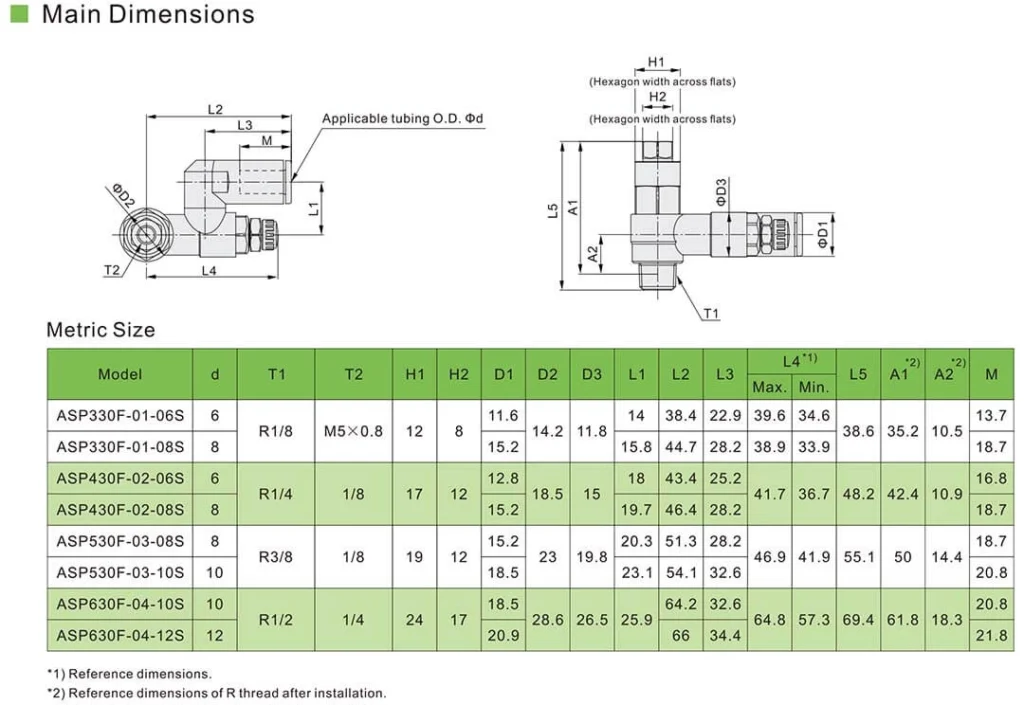

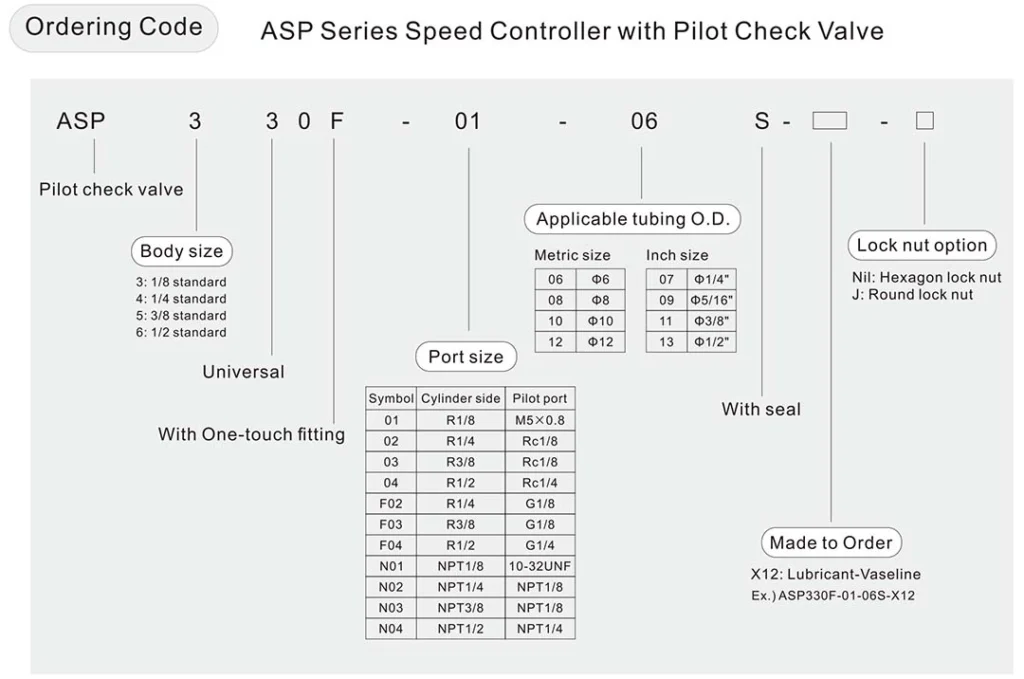

Model

Model	Port size	Pilot port	Applicable tubing O.D.
			Metric size				Inch size
			Φ6	Φ8	Φ10	Φ12	Φ1/4″	Φ5/16″	Φ3/8″	Φ1/2″
ASP330F-01	R1/8	M5x0.8	●	●
ASP430F-02	R1/4	Rc1/8	●	●
ASP530F-03	R3/8	Rc1/8		●	●
ASP630F-04	R1/2	Rc1/4			●	●
ASP430F-F02	R1/4	G1/8	●	●
ASP530F-F03	R3/8	G1/8		●	●
ASP630F-F04	R1/2	G1/4			●	●
ASP330F-N01	NPT1/8	10-32UNF					●	●
ASP430F-N02	NPT1/4	NPT1/8					●	●
ASP530F-N03	NPT3/8	NPT1/8						●	●
ASP630F-N04	NPT1/2	NPT1/4							●	●

* Brass parts are all electroless nickel plated.

Flow Rate and Sonic Conductance

Model		ASP330F	ASP430F		ASP530F		ASP630F
Tubing O.D	Metric size	Φ6, Φ8	Φ6	Φ8	Φ8	Φ10	Φ10	Φ12
Tubing O.D	Inch size	Φ1/4″ Φ5/16″	–	Φ1/4″ Φ5/16″	Φ5/16″	Φ3/8″	一	Φ3/8″ Φ1/2″
Controlled flow Free flow	Flow rate (L/min(ANR))	180	330	350	600	750	1100	1190
Controlled flow Free flow	Sonic conductance dm³/ (s·bar)	0.58	1.04	1.08	1.86	2.32	3.4	3.68
Critical pressure ratio	Controlled flow	0.15	0.15		0.15		0.15
Critical pressure ratio	Free flow	0.25	0.25		0.25		0.25
