Product Feature
1. Ultra-Fast Response – Opens/closes in milliseconds for high-speed automation.
2. Long Service Life – Rated up to 50 million cycles for low maintenance.
3. Compact & Lightweight – 20mm width, easy to integrate in tight spaces.
4. Durable Construction – IP65 protection and corrosion-resistant materials.
5. Versatile Mounting – Free installation orientation for flexible design.
6. Optimized Flow – 160 L/min standard flow rate for efficient pneumatic control.
7. Wide Operating Range – Works from -10°C to +60°C and 0.5–6 bar pressure.
8. Energy Efficient – Low power consumption (8.6W, max. 12W).
Applications
1. High-speed screening and handling applications (supports fast-paced production)
2. Automated actuator controle
3. Feeder
4. Packaging machinerye
5. Screening of workpiecese
6. Color sorting machine (partly with actuators), etc.
7. Intermittent air blowing applications (energy saving, reduction of air consumption)
8. Cutting process
9. Cooling process
10. Removal of molded partse
11. Part cleaning process
12. Static eliminator, etc.
Product Specification
Specification
※ Working power: calculated at 100Hz, opening time 6ms, interval 4ms

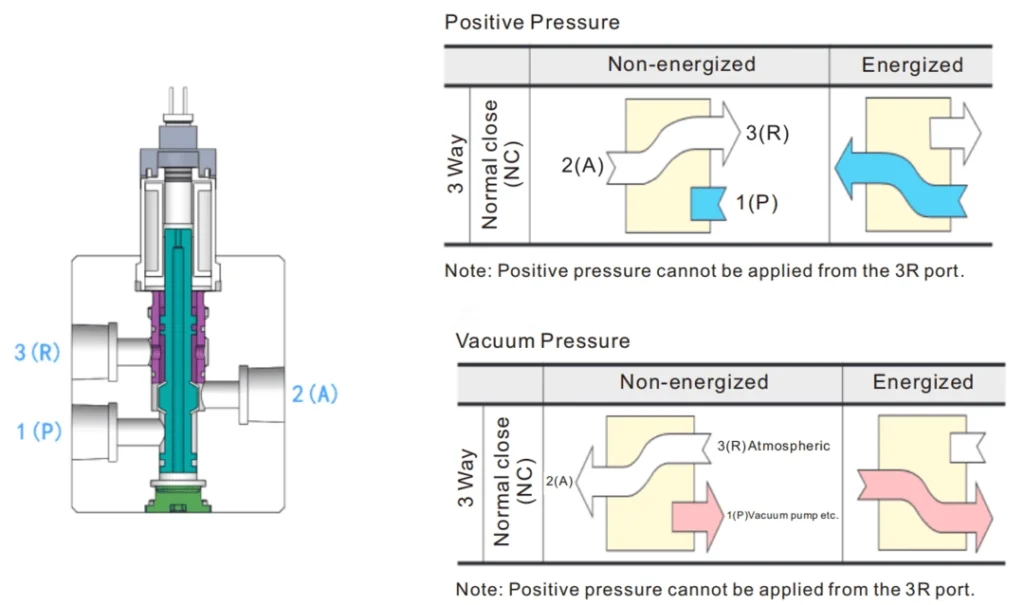

Function and Connection Position

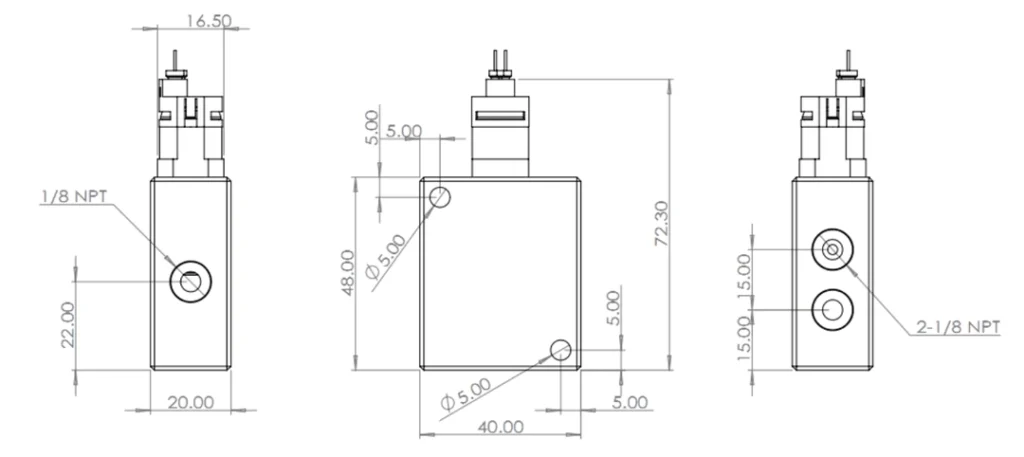

Main Dimensions
