AF Series Air Filter

VPC's AF modular style air filter combines the element and bowl in one piece, making element replacement easy. There is a maximum 46% reduction in size, reducing required maintenance space. The AF bowl (size 10 and 20) is covered with a transparent bowl guard, allowing 360° monitoring. The modular design of the AF allows connection with other VPC air preparation equipment. The series is available in body size 10,20,30,40 and 50.

Working mediumCompressed air
Working temperature5 to 60℃
Pressure adjusting range0.05 to 0.85Mpa
Filter precision25 μm(5 μm is optional )
Bowl materialAluminum
Core materialBrass
Request a Quote

Product Description

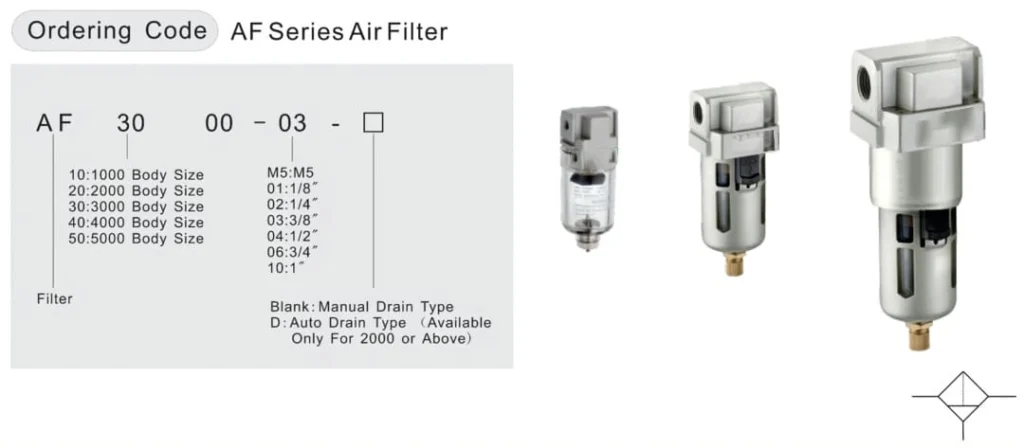

AF air filter

Product Specifications

Guaranteed pressure resistance 1.5Mpa
Max. working pressure 1.0Mpa
Working temperature 5 to 60℃
Filter precision 25um (5um is optional)
Bowl material Aluminum
Bowl guard AF1000 to 2000 (None) / AF3000 to 5000 (Avaiable)
Pressure range 0.05 to 0.8MPa
Water cup Polycarbonate
Core material Brass

Note: NPT, PT Port size is optional.

Model                                           Specification Accessories Drain function Auto drain model
Rated flow (L/min) Port size (G) Bowl capacity (cm³) Weight (kg) Bracket
AF1000-M5 110 M5 4 0.07 – Manual rain –
AF2000-01 750 G1/8″ 15 0.19 B240 Manual drain AW2000-01D
AF2000-02 G1/4″ AW2000-02D
AF3000-02 1500 G1/4″ 20 0.29 B340 A. Zero pressure drain

B. Manual drain

 AW3000-02D
AF3000-03 G3/8″ AW3000-03D
AF4000-03 4000 G3/8″ 45 0.55 B440 AW4000-03D
AF4000-04 G1/2″ AW4000-04D
AF4000-06 6000 G3/4″ 45 0.58 B540 AW4000-06D
AF5000-06 7000 G3/4″ 130 1.08 B640 AW5000-06D
AF5000-10 G1″ AW5000-10D

Note:The above information is based on 0.7Mpa (7.1kgf/cm²) supply pressure and 0.5Mpa (5.1kgf/cm²) setted pressure.

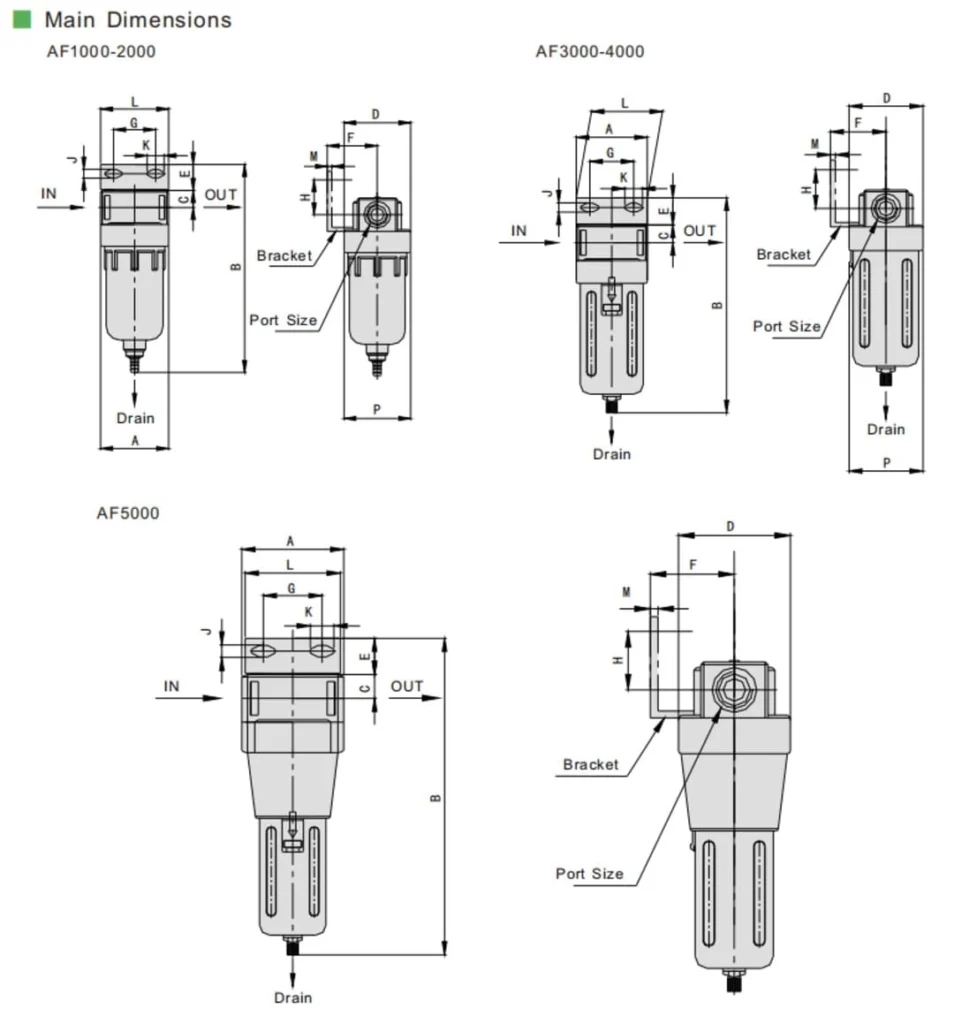

Main Dimensions
