Product Feature
1. Direct-acting normally closed type with sensitive commutation.
2. No need to add lubrication.
3. Multiple valves can be integrated, saving installation space.
4. Equipped with manual device, easy to install and debug.
5. A variety of standard voltage levels are available for selection.
6. The 2v1 is available in both Din type and lead wire options.
Symbol
Product Specifications
| Model | 2V1-06 | 2V1-08 |
| Working medium | Clean air | |
| Acting type | Direct acting type | |
| Joint size | 1/8″ | 1/4″ |
| Orifice | 2mm | |
| Working pressure | 0 to 1.0Mpa | |
| Max.pressure | 1.5Mpa | |
| Working Temperature | -10 to 80℃ | |
| Power | AC220V:5.5VA DC24V:4.8W | |
| Insulation Grade | F | |
| Protective Class | IP65 | |
| Excitation Time | ＜0.05s | |
| Seal Material | NBR | |

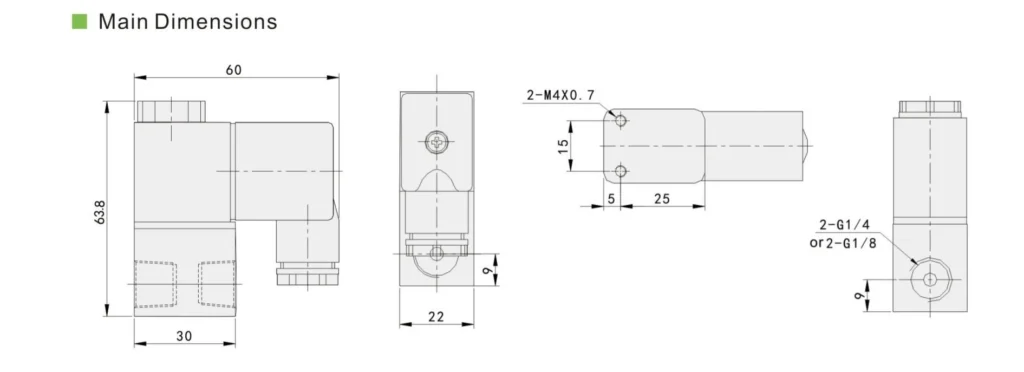

Main Dimensions
