Solenoid Valve

2Q Series Brass Air Control Valve(Normal Close）

  1. 2Q Air control 2 way brass valve , The pilot,external and internal optional,sliding column structure, good sealing effect, sensitive reaction.
  2. Hole adopts a special craft processing,small fractional resistance, low starting pressure, long service life.

Working mediumAir/Water/Oil/Gas
TypeNormal close
Working temperature-5 to 100℃
Working pressure0 to 0.7Mpa
Body MaterialBrass
Acting typeDirect acting
Request a Quote

Product Description

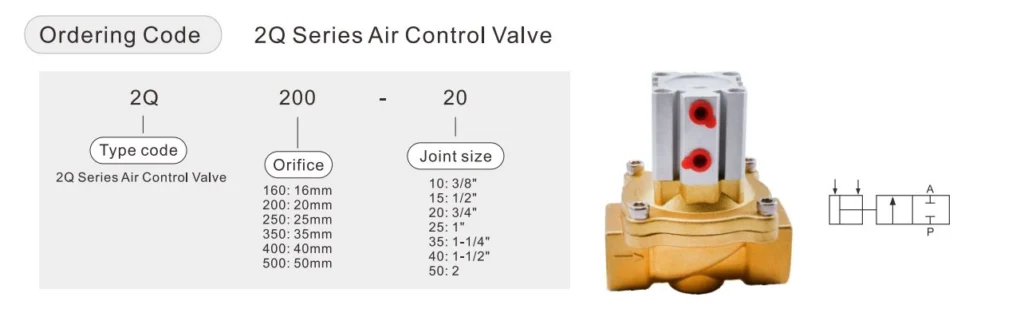

2Q brass solenoid valve symbol

Product Specifications

Model
 2Q160-10 2Q160-15
2Q200-20
2Q250-25
2Q350-35
2Q400-40
2Q500-50
Working Medium
 Air, Water, Oil, Gas
Acting Type
 Direct Acting Type
Orifice
16mm
 16mm
20mm
25mm
35mm
40mm
50mm
CV Value
4.8m³/h
 4.8m³/h
7.6m³/h
12m³/h
24m³/h
29m³/h
48m³/h
Joint Size
G3/8″
 G1/2″
G3/4″
G1″
G1-1/4″
G1-1/2″
G2″
Medium Viscidity
≤50CST
Working Pressure
0~0.7Mpa
MAX.Pressure
1.05Mpa
Control Pressure Range
0.3~0.6Mpa
Working Temperature
-5℃~100℃
Valve Body
Brass
Seal Material
PTFE
Control Joint Size
2-M5
 2-M5 2-M5 2-G1/8″
2-G1/4″

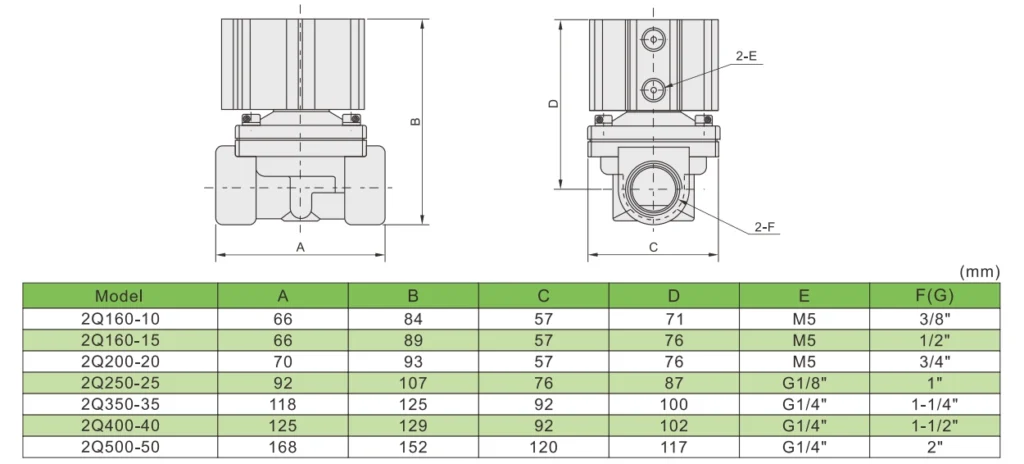

Main Dimensions

2Q solenoid valve main dimensions
